LITTEL-SWITCH SWITCH WS SERIES 100, 100S, 200, 200S
PHONE: 773 792-2700
LITTEL-SWITCH SWITCHES
274
SWITCHES
?
* Please visit the product pages on our website for the most up-to-date product information
?
PART NUMBERS
Pushbutton Color/Part Number
Red
Black
Circuit
Schematic
101
? 101S
? 102
? 102S
201
? 201S
202
? 202S
1-A, SPST, (N.O.)
1-B, SPST, (N.C.)
101
102
103
103
203
1-C, SPDT
? 103S
? 203S

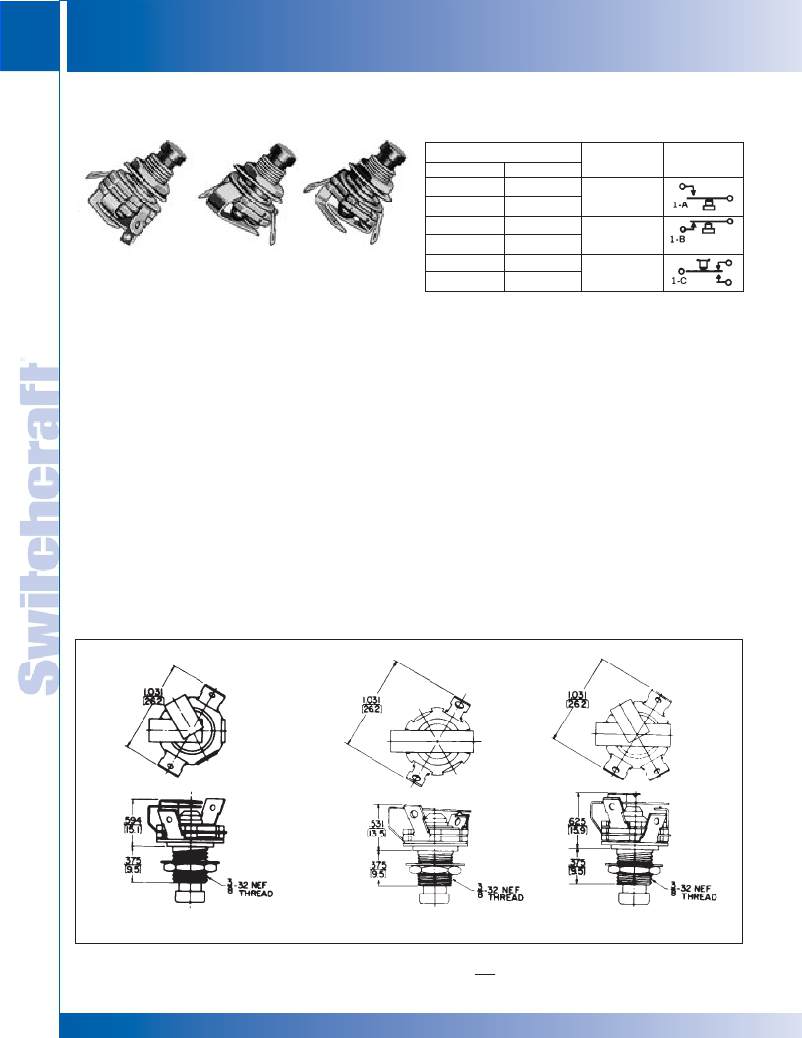

SERIES 100, 100S, 200, 200S
Momentary switches feature leaf springs, insulating spacers,
notched insulating washers and plated copper alloy bushing
assembled into a rugged, reliable, long-life switch for limited
space applications. Series 100 and 200 have integral .25 A
contacts intended for low power switching where contact
resistance is not critical. Series 100S and 200S have 3 A
fine silver contact. Red and black pushbuttons, solder lug
terminals and choice of 1-A, 1-B or 1-C switching are
standard. Shaft and pushbutton molded as one piece.
Captive shaft extends through bushing, actuated leaf
springs. Notched phenolic washers insulate springs and
interlock all members, eliminating possibility of springs
shifting. All springs are insulated from bushing.
MOUNTING
Switches mount from rear in panels up to .250" (6.35 mm)
thick in .375" (9.52 mm) diameter holes. Locknuts and
washers are supplied.
LEGENDS
Switchcraft offers a wide variety of engraved legends on
special order. Contact Switchcraft for details.
? Special order only; contact Switchcraft for price and delivery.
“S” at the end of part number indicates 3H rated fine silver contacts.
SPECIFICATIONS
Bushing: Copper alloy, plated.
Pushbutton: Molded plastic, integral with shaft.
Insulation: Rigid plastic.
Springs: Copper alloy.
Contacts: Integral contacts are standard. (Series 100, 200)
.250 A, 30 W maximum, AC, non-inductive load. Riveted
silver contacts (Series 100S, 200S); 3A, 300 W maximum
AC, non-inductive load.
Washer: Steel, plated, S10221.
Locknut: Copper alloy, plated, P10001.
SPECIAL ORDER FEATURES
? Other pushbutton colors.
? Legends.
? Welded crossbar palladium contacts for dry circuit.
SPST (NO) 1-A
SPST (NC) 1-B
SPDT 1-C
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
